Specifications

?Voltage Rating: 250V/125V/100V/72V/63V/32Vdc

?Amperage Rating: 20-100A

?Size: 4.5*4.5*12.4mm

Applications

?PC server and Telecom systems

? Power Supplies

?LCD TV inverter boards DC input protection

? High end servers / Blade computing

? Base station power supply

? Voltage regulator module

?Cooling fan system for PC Server

?Battery Management System (Industrial Tools)

? ATCA applications for cloud computing

?Uninterruptible Power Supply (UPS)/3-Phase

?PC server and Telecom systems

? Blade Servers

?Lithium Battery，Rechargeable

? LCD TV inverter boards DC input protection

?Routers Bicycle

Agency information

File Number: E365879, Guide JDYX2/JDYX8

Product Characteristics

? Low voltage drop

? High Reliability Solder less Fuse

? High pulse resistance

? Lead-free--compatible with lead-free solders

? And higher temperature profiles

? Halogen-free and RoHS compliant

? UL Recognized to UL248-1

? Indicates compliance with Low-Voltage and RoHS Directives

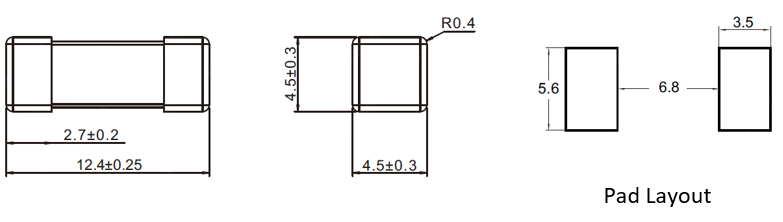

Dimensions(mm)

Catalogue Numbers
